W 15 Back

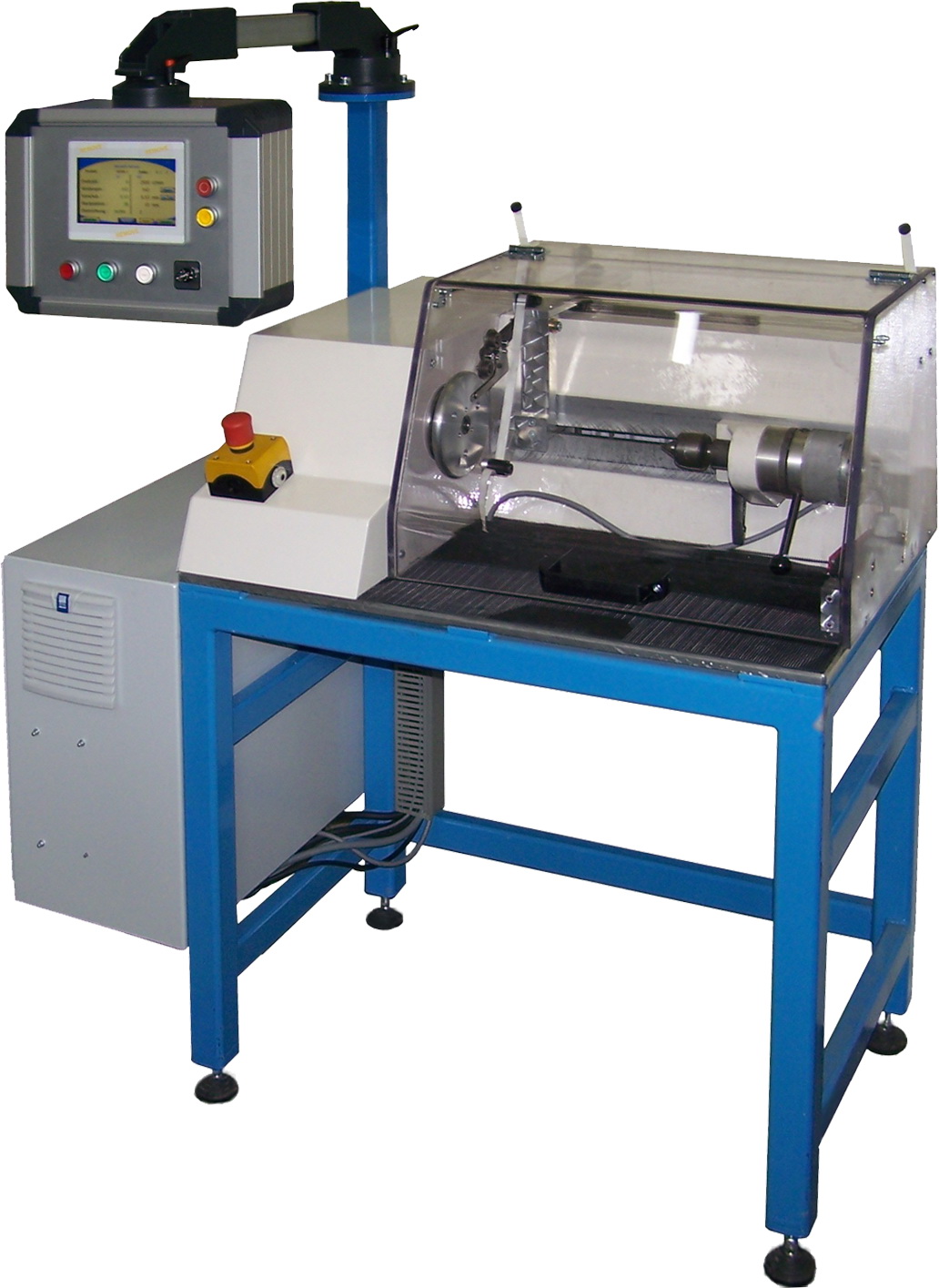

The W 15 is a compact special high speed layer winding machine with servo-controlled precision guidance.

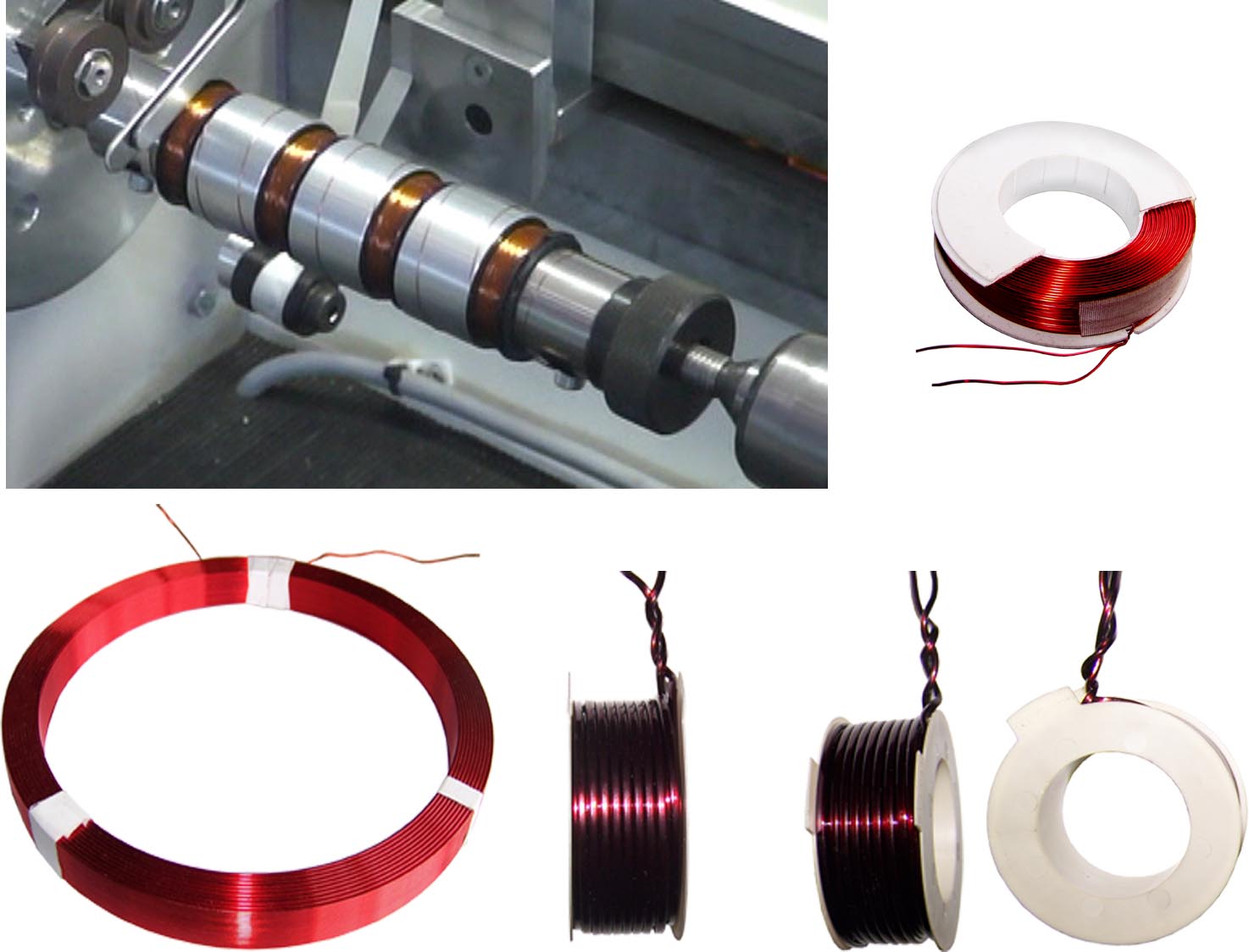

It has a fast action safety tensioner at the tailstock. This machine is suitable for single as well as multiple winding of relay coils, small layer coils, small transformers, transistor output connectors, baking- and air coils and so on, with high winding speed.

An extremely economical production is guaranteed, due to a high maximum speed, simple handling, wire break control and the automatic winding process.

The different operational modes are controlled with a PLC. In order to achieve a simplified and clearer operation of programming, the control desk is equipped with a Touch screen display.

Download technical data

Please fill out the following table. Your relevant information enables us to prepare a precise offer for optimally suitable machines. We also recommend sending drawing documents and wrapped samples.

Formular

Winding-No.:		1	2	3
Purpose of the core (transformer etc.)
Special features (solder thread, intermediate insulation)
Type of wire (Cul, CrNi, etc.)
Wire diameter / wire cross-section
Body dimensions	L1
	L2
	A
	B
	a
	b
	da
Round coil
Square coil
Multiple winding
Number of windings
Required wire length
Number of layers
Layer switch-off	after each layer
Layer switch-off	after how many layers
Other details

First Name*

Last name*

Company*

Address

Phone

E-Mail*

I hereby confirm that I have read the privacy policy*

Fields marked with * are mandatory fields
