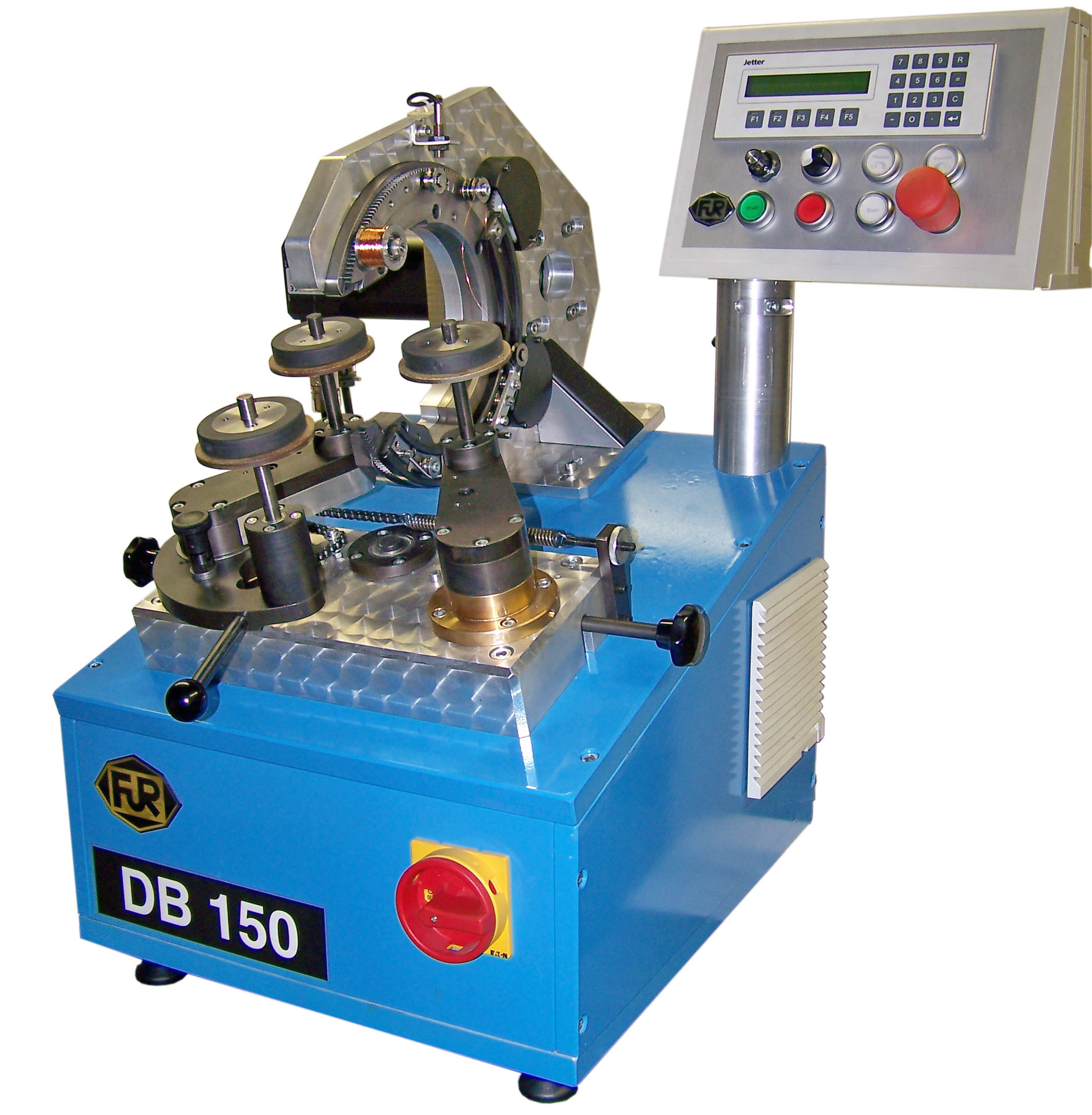

DB 150

The DB-150 is a ring winding machine for winding small toroidal cores. It is equipped with a foldable core holder that enables safe and quick clamping. The holders can be quickly adjusted to a different type of winding body.

The feed and the head drive are coupled. Roller printing is done mechanically. Magazine is replaceable.

Download technical data

Please fill out the following table. Your relevant information enables us to prepare a precise offer for optimally suitable machines. We also recommend sending drawing documents and wrapped samples.

Formular

Winding-No.:		1	2	3
Purpose of the coil (transformer etc.)
Special features (solder thread, intermediate insulation)
Type of wire (Cul, CrNi, etc.)
Wire diameter
Core dimensions wound	da
	di
	h
Core dimensions unwound	da
	di
	h
Unwrapped residual segment	α
Number of windings
Required wire length
Number of layers
Other details
