RWA 2

The Automatic Toroidal Winding Machine
RWA 2 has been developed on the basis of
the toroidal winding machine DB2, aiming at
the special winding requirements of stator
cores of a special design. Once the core is
clamped and the wire is placed, the winding
programme runs fully automatic without any
manual engagement, but can be modified in
certain points. Due to the steplessly working
electronic speed control, the winding speed
can be optimally adapted to the working conditions.

Download technical data

Please fill out the following table. Your relevant information enables us to prepare a precise offer for optimally suitable machines. We also recommend sending drawing documents and wrapped samples.

Formular

Groove no.	Windings	Groove no.	Windings

Winding-No.:
Purpose of the coil (transformer etc.)
Special features
Type of wire (Cul, CrNi, etc.)
Wire diameter
Core dimensions wound	da
	di
	h
Core dimensions unwound	da
	di
	h

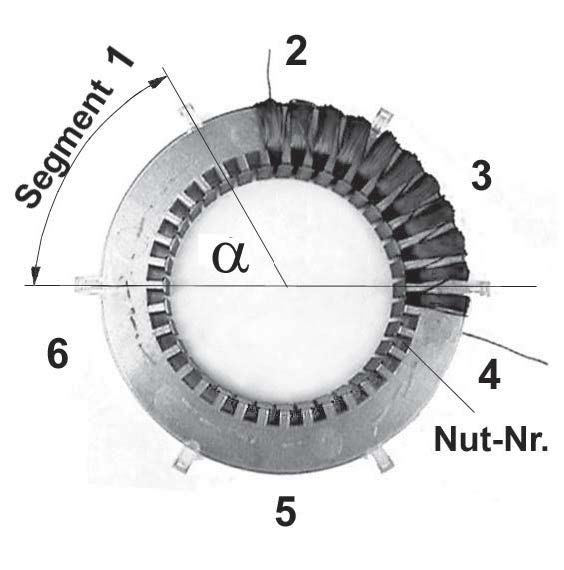

Segment-Winkel max. α ≤ 60°
Number of grooves per segment
How many turns per groove (see table above)
Number of cycles
Other details
