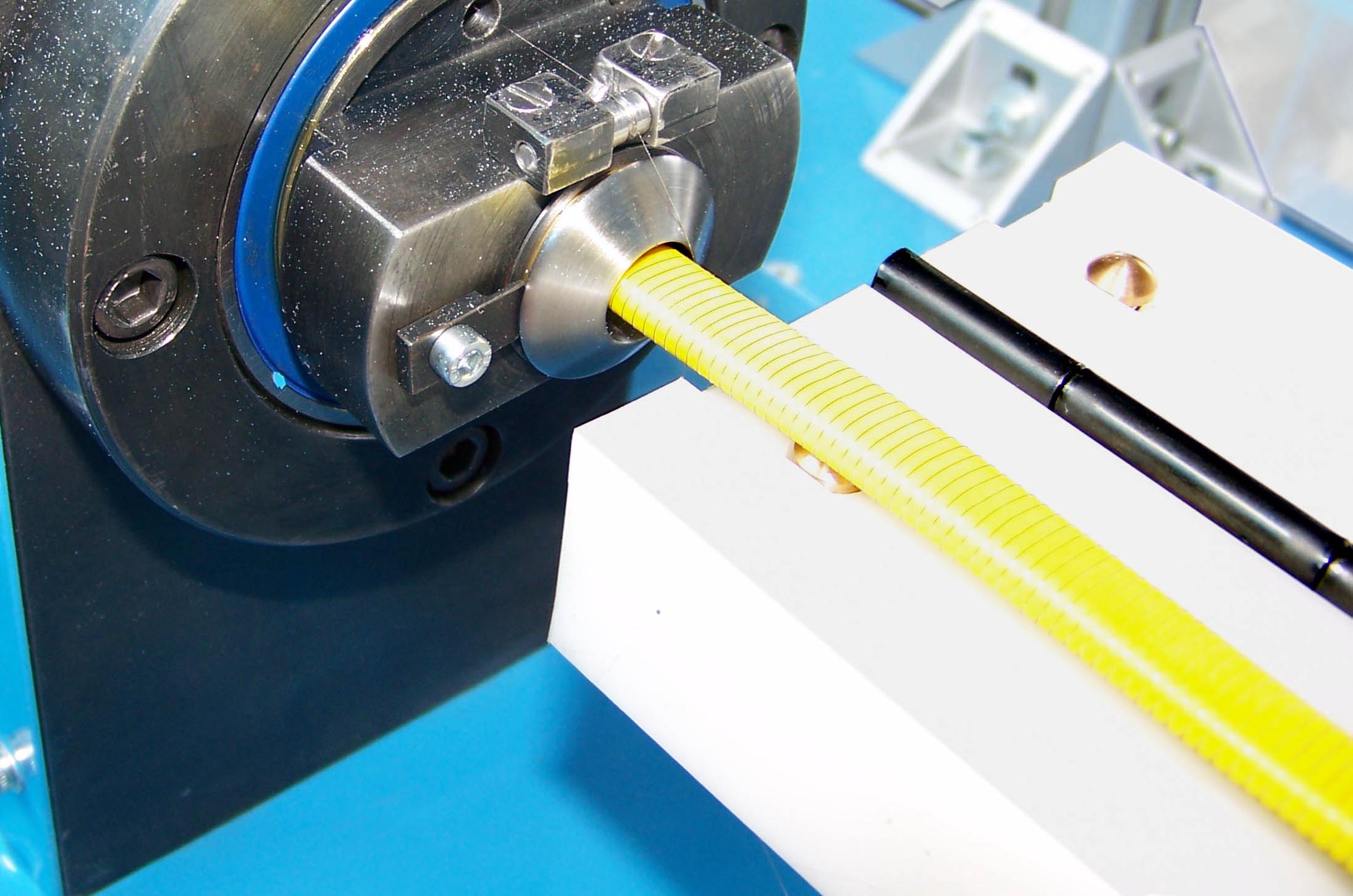

WWM 12

A reference measurement of the applied winding can be carried out using a resistance measuring device. All parameters are freely programmable and retrievable. Processes, winding devices and resistance value control are optionally available. Due to the modular design of the machine, customer-specific units such as banding equipment, cutting equipment, heating equipment, etc. are easy to integrate.

Please fill out the following table. Your relevant information enables us to prepare a precise offer for optimally suitable machines. We also recommend sending drawing documents and wrapped samples.

Formular

    1. Purpose of the coil
    2. Winding product (carrier material)
    3. Type of dereeler (e.g. rotating; rolling)
    Dimensions of the dereeler spool
    (or specification of DIN No.)
    Gesamt - ⌀
    Innen - ⌀
    Clear span
    Bohrung - ⌀
    4. Dimensions of the wind-up spool:
    (or specification of DIN No.)
    Gesamt - ⌀
    Innen - ⌀
    Clear span
    Bohrung - ⌀
    5. Material of the wire or yarn (e.g. CrNi, Cu or Kevlar)
    Wire size
    Feed
    6. Tape type, tape material
    Tape thickness x tape width
    Overlap
    Required tape length
    7. Winding direction
    8. How many times should be wound?
    9. Other
